A27

Products features

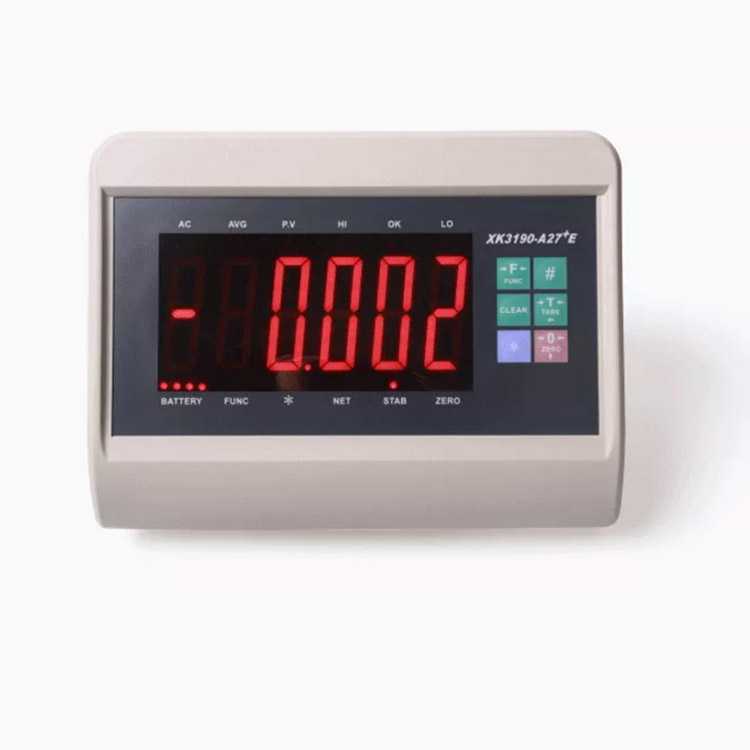

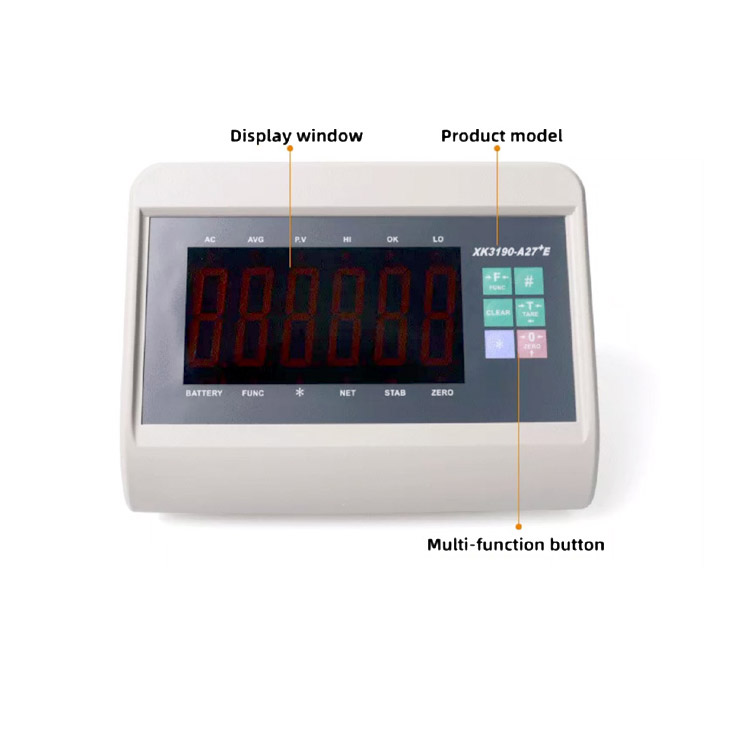

• Single window with 2 inch height highlight LED display, the real“big eyes”
• Peak value holding and average value function
• Auto/Manual accumulate
• Four grades battery indication, low power alarm and auto power off
• High-Low limits alarm function, with HIGH-OK-LOW indications
• Auto-sleep function
• Preset tare
• Precision auto zoom 10-magnification function
• High precision A/D conversion with readability 1/30000
• AC/DC power supply with built-in rechargeable 6V/4AH battery
• RS232 interface with selectable baud rate
• With scoreboard communication interface,20mA current loop way

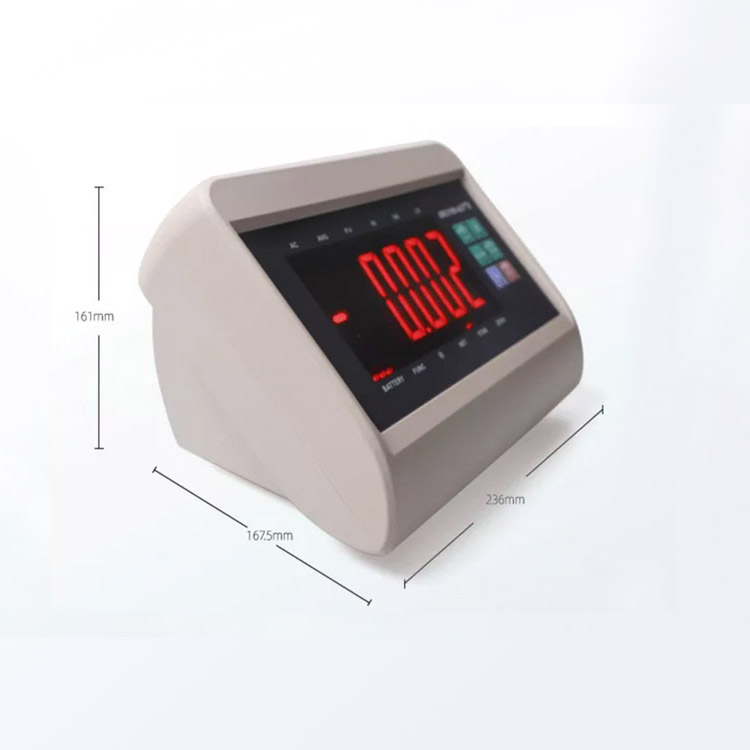

Dimensions

Technical Specifications

• Precision grade:3 grades
• Max division:3000
• Input-signal range:-19mV～19mV
• Conversion rate:more than 10 times/sec.
• Nonlinear≤0.0015%
• Load cell connection: able to connect with 1-4 350Ω load cell
• Division:1/2/5/10/20/50(selectable)

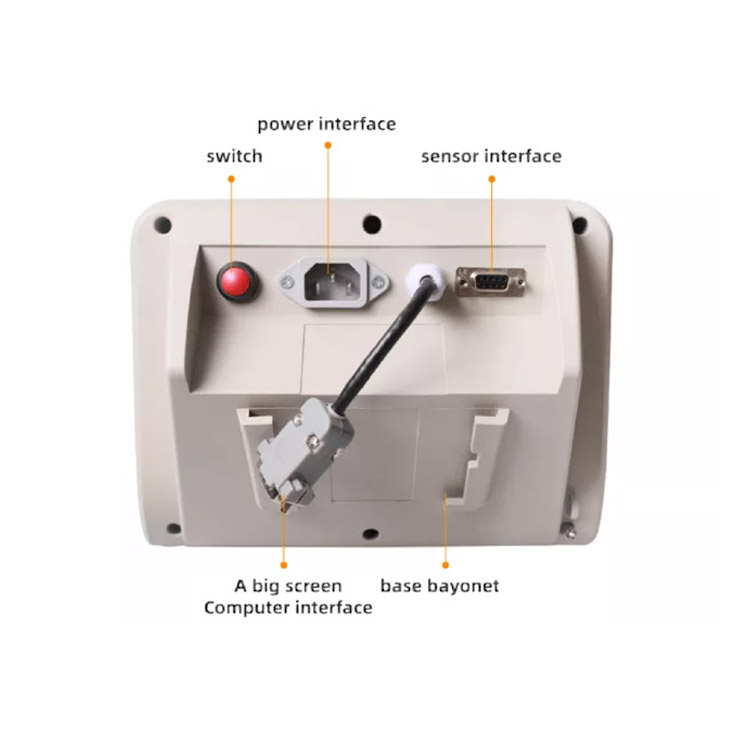

• Communication port:RS232(serial), 20mA current loop signal to scoreboard connection
• Power supply:DC 5V; AC220V； 50、60Hz（-2%~+2%）
• Operation temperature:-10 °C～40 °C
  Storage/Transportation temperature:-25 °C～55 °C
  Scoreboard Interface:
• Signal output method: serial output, current loop signal
• Baud rate:600
• Distance of transmission:≤200m
  Serial communication interface
• RS232C
• Baud rate:600/1200/2400/4800/9600 optional
• Distance of transmission:≤30m
