A9-P

Products features

• Compatible with all functions of model XK3190-A9, with built-in printer
• ∑-Δ high precision A/D conversion method, able to process input signal from -16mV to 18mV
• Good consistency, no need to re-calibrate a scale if change the former indicator, high precision
• DC power socket with anti-connect and anti-short circuit protection
• With strong anti-disturbance function
• AC/DC power supply, standard chargeable battery
• 7-bits 0.8 inch LED display, 3-level battery indications
• Able to setup zero-tracking range, zero(auto/manual) range
• With 2-point calibration correction function, 2 compensation calibration methods
• Able to save 1001 weighing records, 1000 truck records consisting of truck ID and corresponding
• tare weight, 201 records of goods
• Able to print across and upright weighing bill
• Able to print different statistical reports
• Standard RS232 communication interface(RS422/RS485 optional)

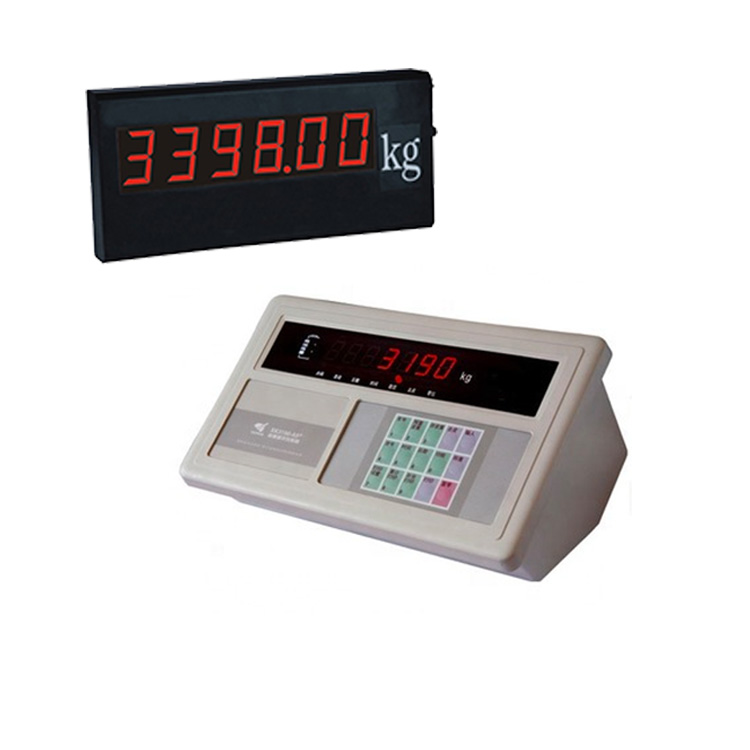

• Standard scoreboard interface with current loop
• Standard parallel print interface
• Able to connect assigned thermal printer

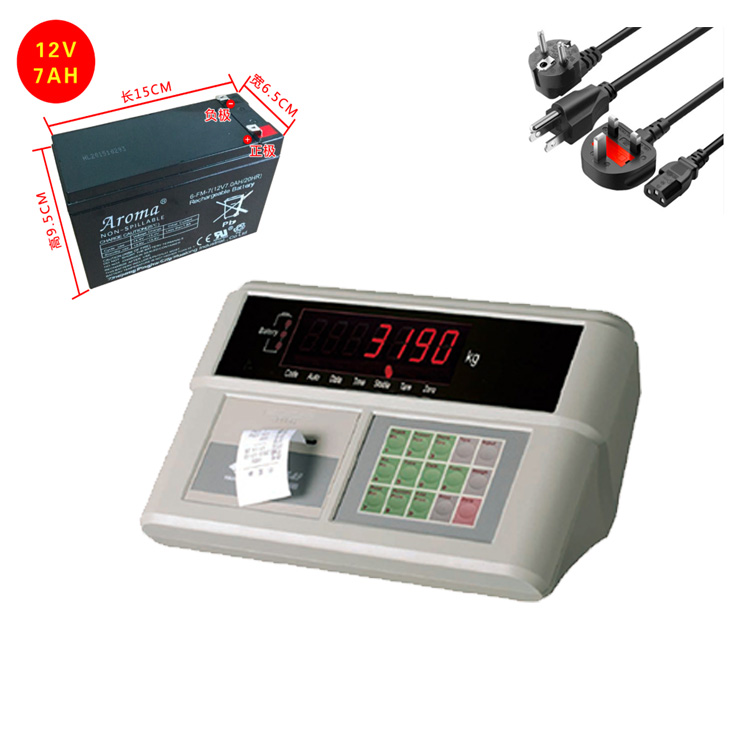

• XK3190-A9+P with built in printer

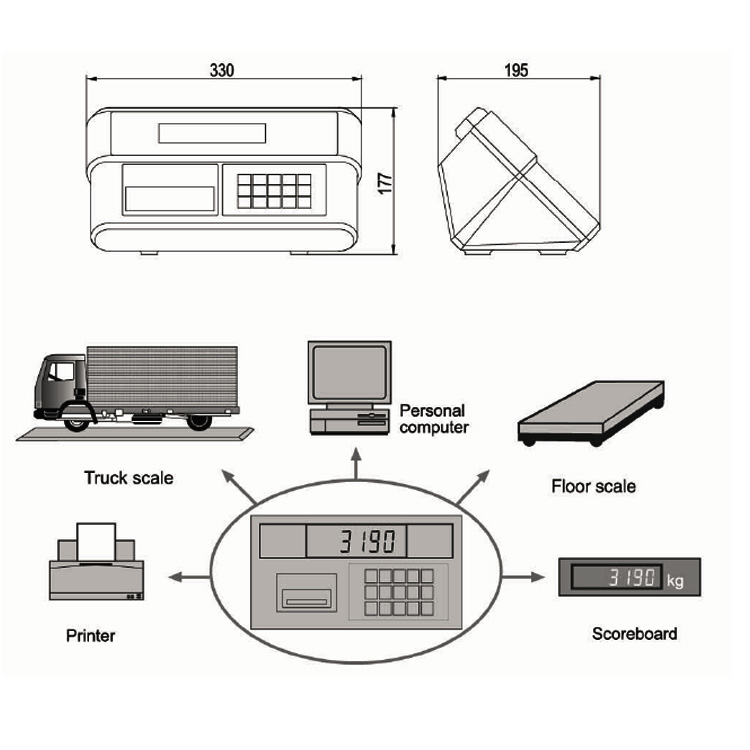

Dimensions

Technical Specifications

• A/D conversion method: ∑-Δ
• Input signal range:-16mV~18mV
• A/D conversion speed: 10times/sec.
• A/D conversion code: 1 million code
• Load cell excitation: DC 5V
• Max. connection number of load cell: 8 at 350 ohm/16 at 700 ohm
• Load cell connection mode: 6 wire, auto compensation for long distance
• Division: 1/2/5/10/20/50/100 optional
• Clock: real clock without effect when power off
• Transmission: current loop/RS 232 signal
• Baud rate:600
• Transmission distance: ≤30 meters
• Serial communication: interface
• Transmission method:RS232/RS422(optional)/RS485(optional)
• Baud rate:600/1200/2400/4800/9600(optional)
• Transmission distance:RS232:≤30 meters;RS422/RS485:≤1200 meters
• Print interface
• Standard parallel output interface
• Built-in micro-printer(A9+P)
• Data storage:1000 truck records consisting of truck ID and corresponding tare
• weight 201cargo ID.1001 weighting records
• Power supply: AC 220V(-15%-+10%);50Hz(-2%-+2%)
• DC 6V/10Ah External battery rechargeable
