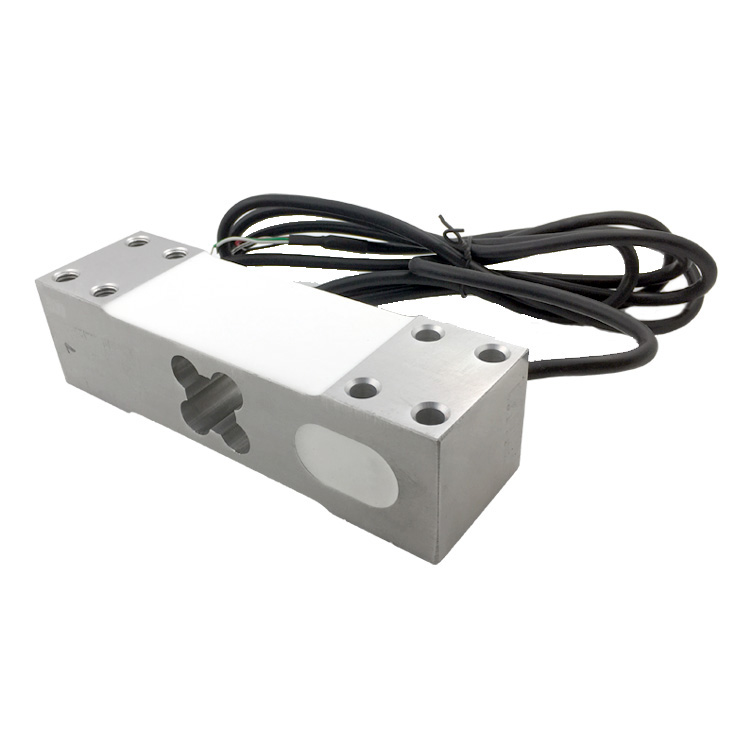

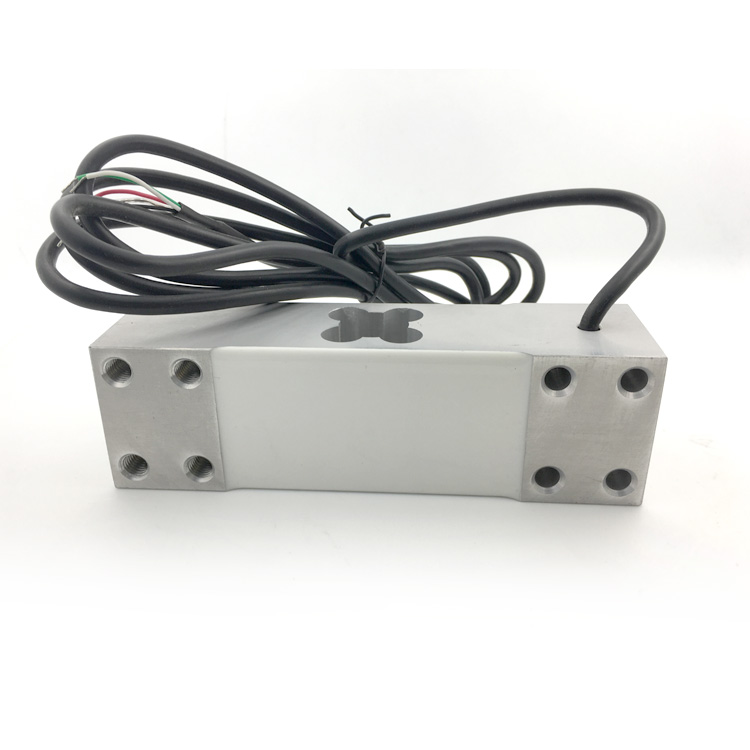

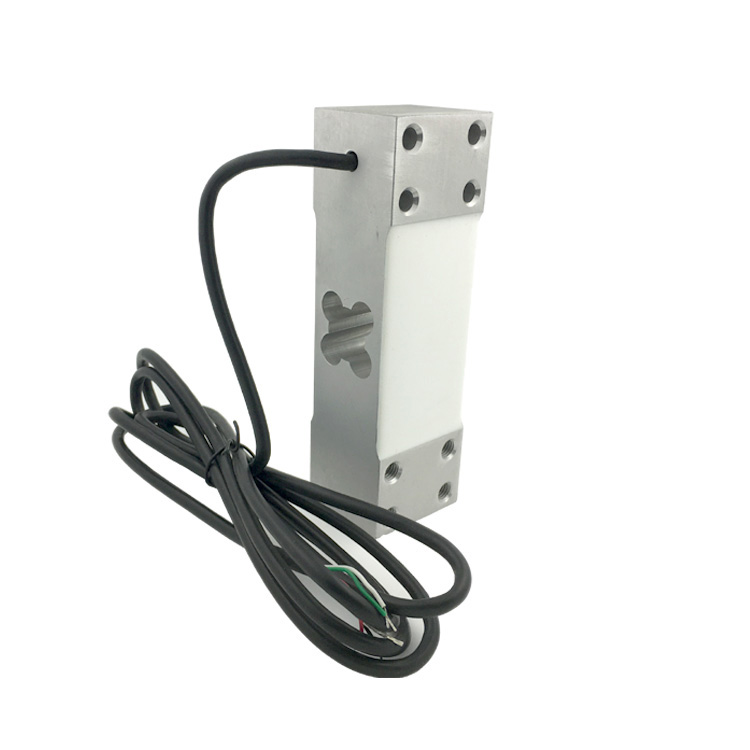

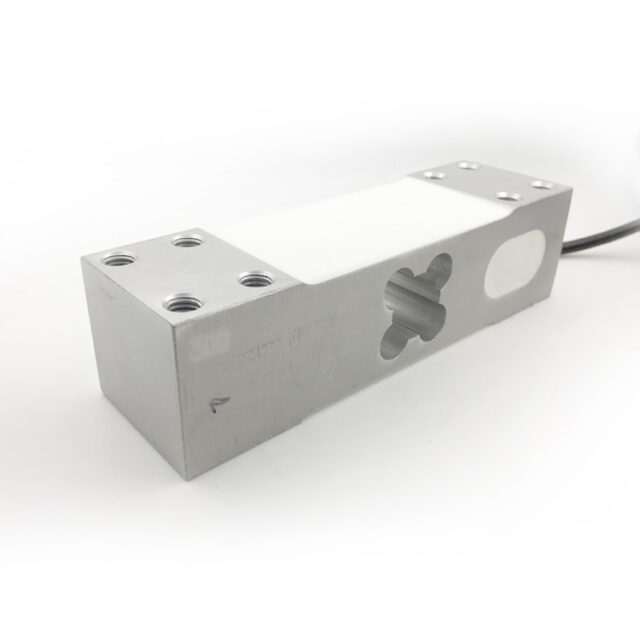

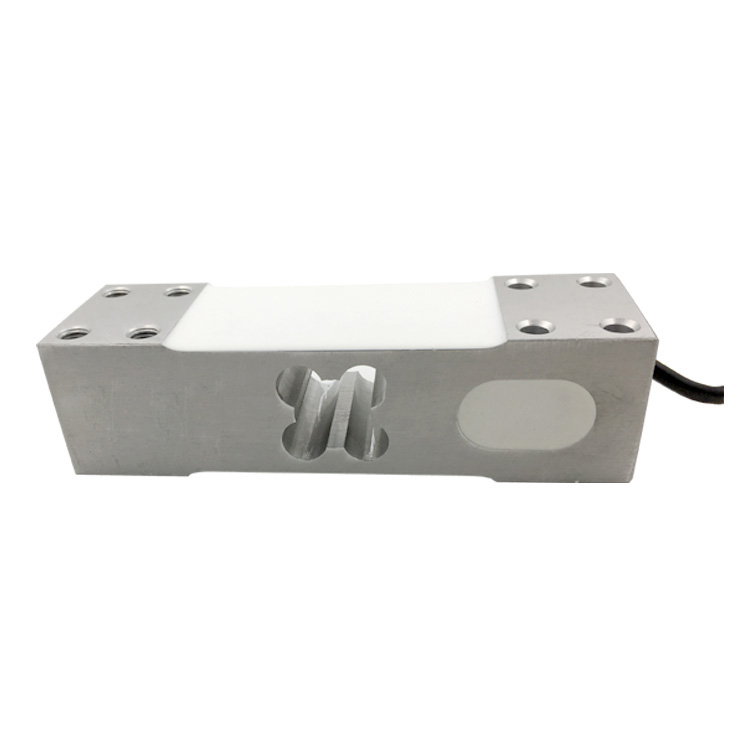

BA642 single point load cell

General Details

Key features:

High grade aluminium

Etremely high accuracy

Support platform sizes of 400 x 400mm

3000 divisions OIML R60 class C

Auto temperature compensated

Standard with 2.0mV/V sensitivity and 4-wire connection

Ideal for bench scale, packaging and grading machines, bag filling machines



DIMENSIONS

BA642 dimension

SPECIFICATIONS

Items C3        C4        C5        C6 Unit
Combined error 0.015      0.012      0.01      0.008 %Emax
Rated Capacity 100, 200, 300, 500 Kg
Rated Output Analog 2.0mV/V ± 0.1%   Digital 1,000,000d
Zero Output < 1.0 %Cn
Non-linearity < 0.01 %Cn
Repeatability < 0.005 %Cn
Hysteresis Error < 0.015  < 0.0125  < 0.010   < 0.008 %Cn
Creep < 0.015  < 0.0125  < 0.010   < 0.008 %Cn
Temperature Effect on sensitivity(Tkc) < 0.010  < 0.008  < 0.007   < 0.005 %Cn/k
Temperature Effect on zero balance(Tko) < 0.010  < 0.007  < 0.007   < 0.007 %Cn/k
Input Resistance 385 ±5 Ω(Ohms)
Output Resistance 351 ± 2 Ω(Ohms)
Insulation Resistance > 5000 MΩ (50V DC)
Safe Overload 120 %F.S
Breaking Overload 150 %F.S
Working Temperature Range -20~ +70 /-20 ~ +160 °C/°F
Recommended Excitation 8~15 V (DC or AC)
Maximum Excitation 24 V (DC or AC)
Material of elastomer Aluminum/Alloy steel / Stainless steel
Protection level IP68 / IP69 / IP69K
Cable 1m
Standard GB/T7551-2008  OIML R60

WIRING CODE
