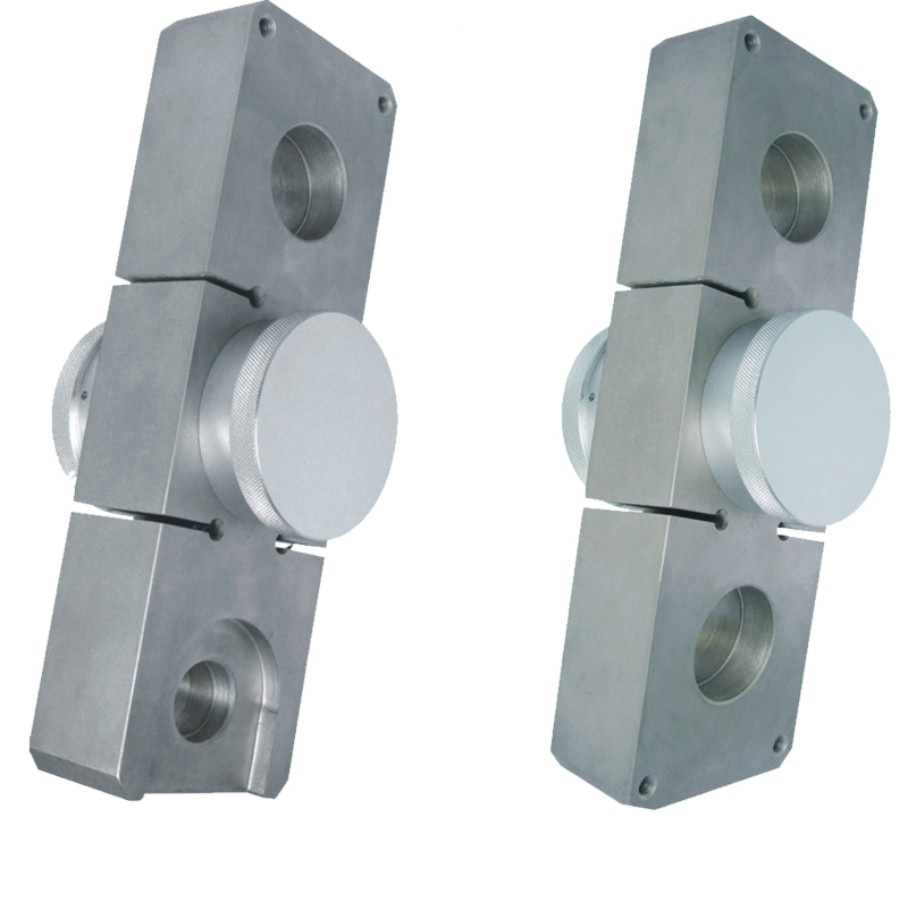

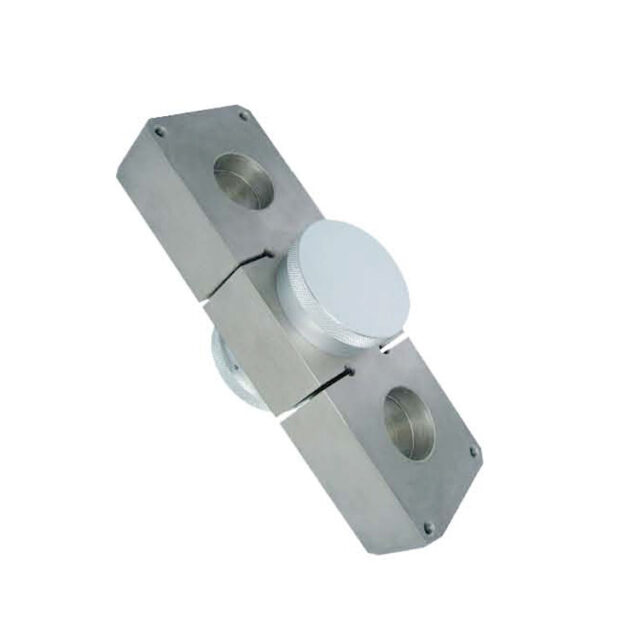

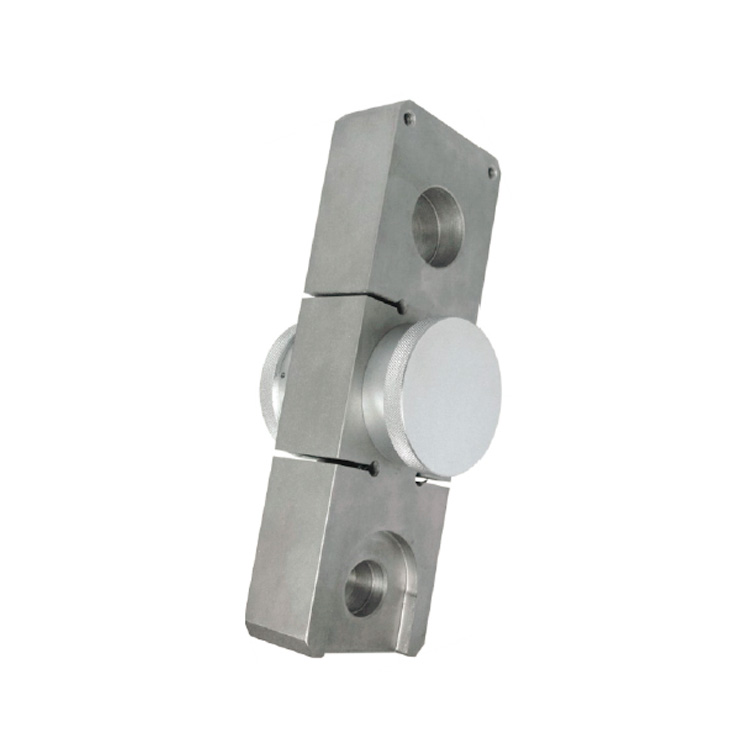

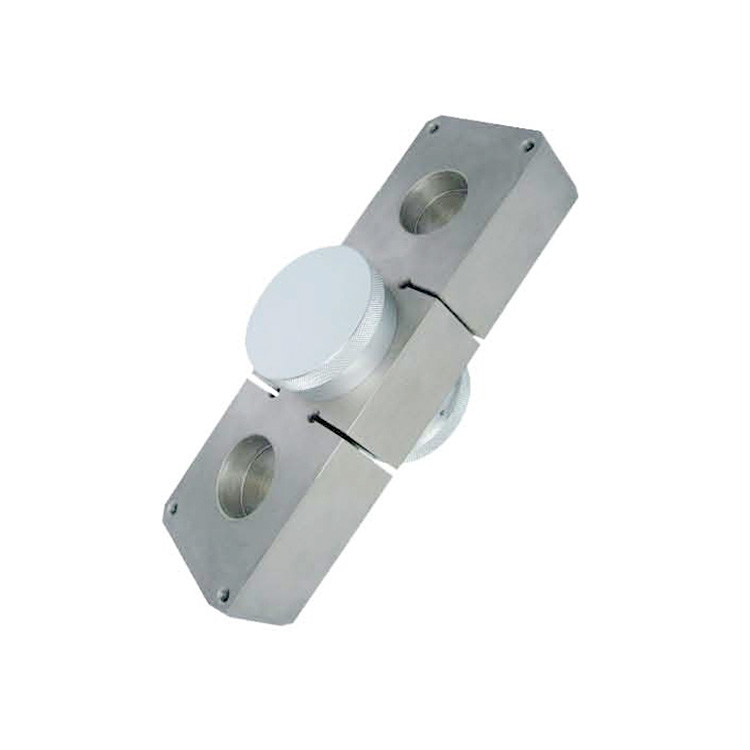

BHW load cell

General Details

KEY FEATURES

Wide capacity range from 1t to 300t

Compact, heavy duty design

Adapted for standard shackles

3000 divisions OIML R60 class C

Auto temperature compensated

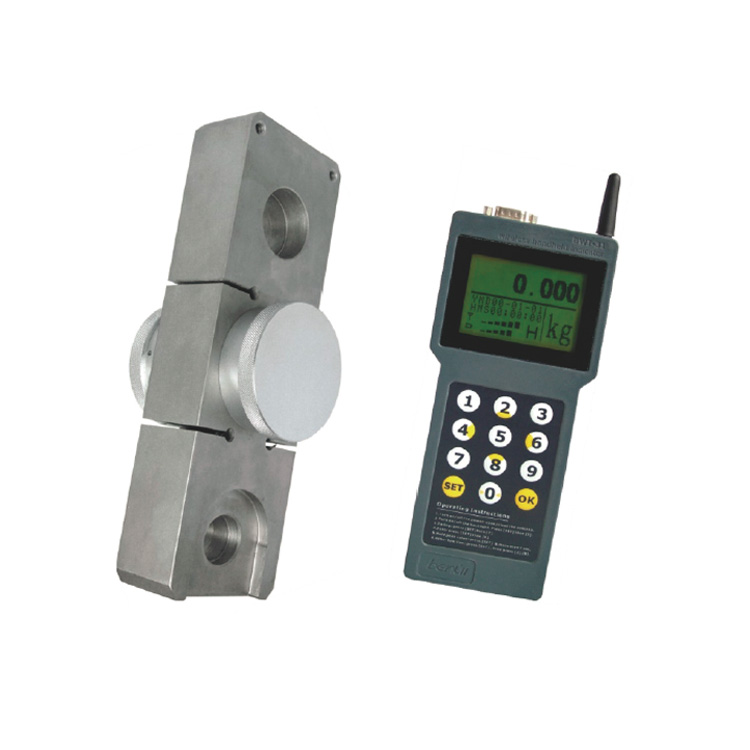

Wireless range not less 150 meters

Ideal for winching and towing, hanging crane and hoist scales

Safety overloading: 150%, Breaking Overload: 300%

Fully laser welded for harsh industrial environment

High quality nickel plated with strong corrosion resistant

DIMENSIONS

BHW dimension

SPECIFICATIONS

Items C3        C4        C5        C6 Unit
Combined error 0.015      0.012      0.01      0.008 %Emax
Rated Capacity 1, 2, 3, 5, 10, 20, 30, 50, 60, 100, 150, 200, 300 Ton
Rated Output Analog 2.0mV/V ± 0.1%   Digital 1,000,000d
Zero Output < 1.0 %Cn
Non-linearity < 0.01 %Cn
Repeatability < 0.005 %Cn
Hysteresis Error < 0.015  < 0.0125  < 0.010   < 0.008 %Cn
Creep < 0.015  < 0.0125  < 0.010   < 0.008 %Cn
Temperature Effect on sensitivity(Tkc) < 0.010  < 0.008  < 0.007   < 0.005 %Cn/k
Temperature Effect on zero balance(Tko) < 0.010  < 0.007  < 0.007   < 0.007 %Cn/k
Input Resistance38 775 ±10 Ω(Ohms)
Output Resistance 702 ± 2 Ω(Ohms)
Insulation Resistance > 5000 MΩ (50V DC)
Safe Overload 150 %F.S
Breaking Overload 300 %F.S
Working Temperature Range -20~ +70 /-20 ~ +160 °C/°F
Recommended Excitation 8~15 V (DC or AC)
Maximum Excitation 24 V (DC or AC)
Material of elastomer Alloy steel / Stainless steel
Protection level IP68 / IP69 / IP69K
Cable Wireless range not less 150 meters
Standard GB/T7551-2008  OIML R60

WIRING CODE

PACKAGING(CARTON)

Rated capacity 1~5t 10t 20t 30t 50t
Net.w per carton 6.5kg 11kg 22kg*1 42kg*1 44kg*1
Volume 0.41*0.21*0.21m³/0.7kg
