| Display | 25mm (1’’) 5digits LCD with backlight |
| Power on zero range | 20% F.S. |
| Manual Zero Range | 4% F.S. |
| Tare Range | 100% F.S. |
| Stable Time | ≤5 seconds |
| Overload Indication | 100% F.S. + 9e |
| Max. Safety Load | 125% F.S. |
| Ultimate Load | 400% F.S. |
| Dynamometer battery | “LR6(AA)”size alkaline batteries. 1.5Vx3 |
| Indicator battery | “LR6(AA)”size alkaline batteries. 1.5Vx4 |
| Operating Temp. | – 10℃ ~ + 40℃ |
| Operating Humidity | ≤85% RH under 20℃ |
| Wireless Distance | Min. 80m(default) , 200m(optional) |
| Wireless Frequency | 2.4GHz(default),433MHz,860MHz(optional) |

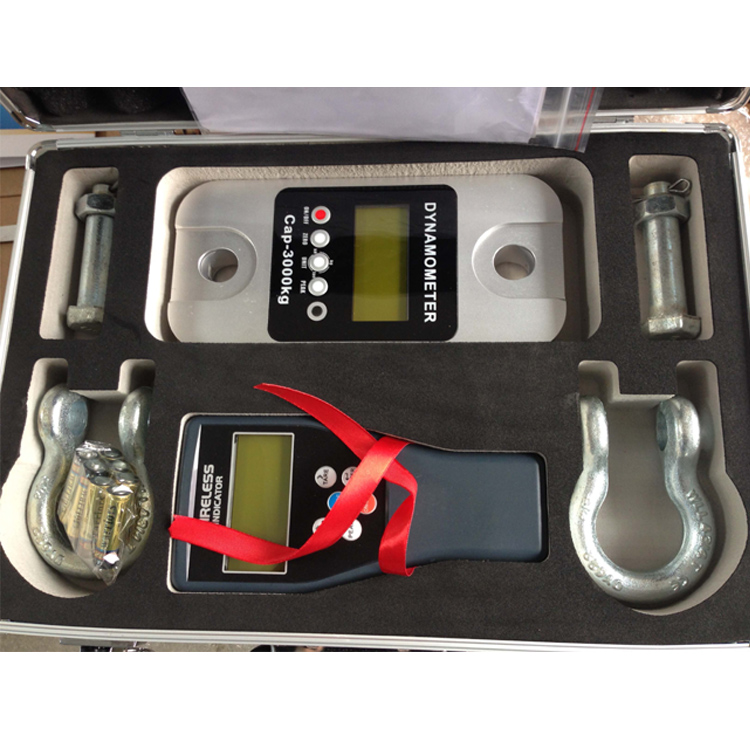

DLW
Products features
- Rugged construction, Aluminum and alloy steel capacities are powder coated.
- Accuracy: 0.05% for 1-50t, 0.1% for above 50t capacity.
- Dual direction wireless communication
- All functions and units are clearly display on the LCD (with backlighting)
- Digits are 1 inch high for easy distant viewing.
- Two user programmable Set-Point can be used for safety and warning
applications or for limit weighing.
- The dynamometer is powered by 3 standard “LR6(AA)”size alkaline batteries.
- All commonly used internationally recognized units are available:
kilograms (kg), short Tons(t), pounds(lb), Newton and kilo-newton(kN).
- Operation through wireless handheld indicator, easier to calibrate
(with password)
- 4 local mechanical keys: ”ON/OFF”,”ZERO”,”PEAK” and ”Unit Change”.
- Low battery warning.
- RF wireless handheld indicator is powered by 4 standard “LR6(AA)”size
alkaline batteries.
Main technical data
Specification
| Model | Capacity(kg) | Min.Weigh(kg) | Division(kg) | Total counts (n) |
| DL-W-1 | 1000 | 10 | 0.5 | 2000 |
| DL-W-2 | 2000 | 20 | 1 | 2000 |
| DL-W-3 | 3000 | 20 | 1 | 3000 |
| DL-W-5 | 5000 | 40 | 2 | 2500 |
| DL-W-10 | 10000 | 100 | 5 | 2000 |
| DL-W-20 | 20000 | 200 | 10 | 2000 |
| DL-W-30 | 30000 | 200 | 10 | 3000 |
| DL-W-50 | 50000 | 400 | 20 | 2500 |
| DL-W-100 | 100000 | 1000 | 50 | 2000 |
| DL-W-150 | 150000 | 1000 | 50 | 3000 |
| DL-W-200 | 200000 | 2000 | 100 | 2000 |
Appearance illustration
| MODEL | CAP | A(mm) | B(mm) | C(mm) | D(mm) | φ(mm) | H(mm) | Material |
| DL-W-1 | 1t | 245 | 112 | 37 | 190 | 43 | 335 | Aluminum |
| DL-W -2 | 2t | 260 | 123 | 37 | 195 | 51 | 365 | Aluminum |
| DL-W -3 | 3t | 260 | 123 | 37 | 195 | 51 | 365 | Aluminum |
| DL-W -5 | 5t | 285 | 123 | 57 | 210 | 58 | 405 | Aluminum |
| DL-W -10 | 10t | 320 | 120 | 57 | 230 | 92 | 535 | Alloy Steel |
| DL-W -20 | 20t | 375 | 128 | 74 | 260 | 127 | 660 | Alloy Steel |
| DL-W -30 | 30 | 420 | 138 | 82 | 280 | 146 | 740 | Alloy Steel |
| DL-W -50 | 50t | 465 | 150 | 104 | 305 | 184 | 930 | Alloy Steel |
| DL-W -100 | 100t | 570 | 190 | 132 | 366 | 229 | 1230 | Alloy Steel |
| DL-W -150 | 150t | 645 | 230 | 139 | 400 | 254 | 1250 | Alloy Steel |
| DL-W -200 | 200t | 720 | 265 | 183 | 440 | 280 | 1362 | Alloy Steel |
