DS8

Products features

• Equipped with various anti-cheating functions
• Equipped with electronic seal function
• New electronic seal encryption method
• With a variety of diagnostic methods, simple debugging
• A variety of expansion interfaces such as Ethernet, 4-20mA, switch quantity, etc. are optional
• Meter LED digital tube display, can store and print complete Chinese plate number
• A variety of diagnostic methods, simple debugging
  Optional Ethernet, 4 to 20mA, switch and other expansion interfaces
• Meter LED digital tube display, can store and print the complete Chinese license plate number

Dimensions

Technical Specifications

• Multiple Yew Wah protocol digital sensors can be connected
• Automatic/semi-automatic/manual angle difference correction
• Digital sensor communication address modification function
• Single sensor data viewing function
• Automatic switching of two indexing values.Non-linear correction function and calibration error correction function
• Timed power off function
• Equipped with two independent full-duplex UARTs for connecting to computers, PLCs and other equipment, with a variety of communication methods available.
• Communication port with large current loop screen; standard parallel printout interface.
• Weighing record storage/checking/deletion/power failure protection.
• Storage of 1024 sets of vehicle registration numbers and tare weights, 256 sets of goods numbers, 4096 sets of weighing records.
• Backup and recovery of all parameters in the instrument, reliable and practical.

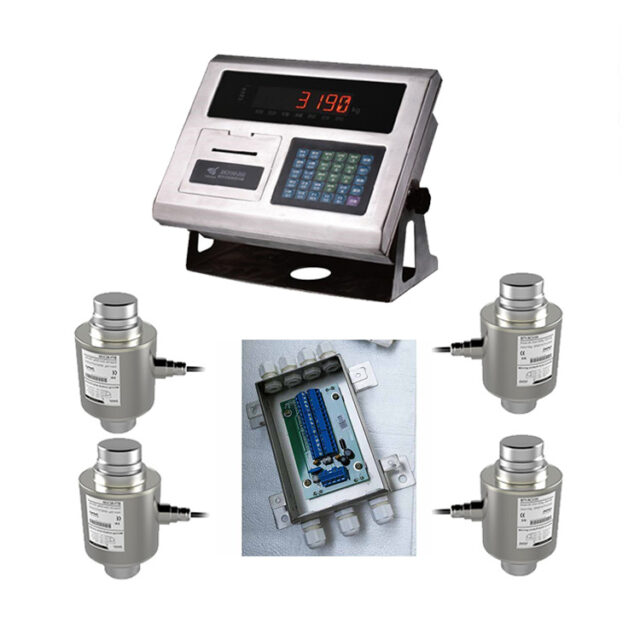

Digital sensor connection

• Connection mode: RS485 mode, four or six wires compatible
• Communication distance: about 1000m
• Number of connections: 1 to 16
• Sensor communication protocol: Shanghai Yaohua
• Sensor power supply: DC 10V, 0.8A (Max)

Display

• Display mode: 7-bit ultra-high bright beige LED digital tube, 10 status indicators, 5 levels of brightness adjustable
• Clock: real time clock, automatic leap year and leap month, not affected by power failure
• Large screen interface
• Signal: 20mA current loop, serial output, transmission distance: ≤2000m

Printing interface

• Wide line printers can be connected: LQ-300K, KX-P1131, KX-P1121 , DS-300
• Thermal micro-typing: POS58, T58D Optional panel micro-typing

Serial communication interface

• Standard configuration: 1、RS232/RS485 adaptive; 2、RS232
• Power supply: AC187～242V;49～51HZ

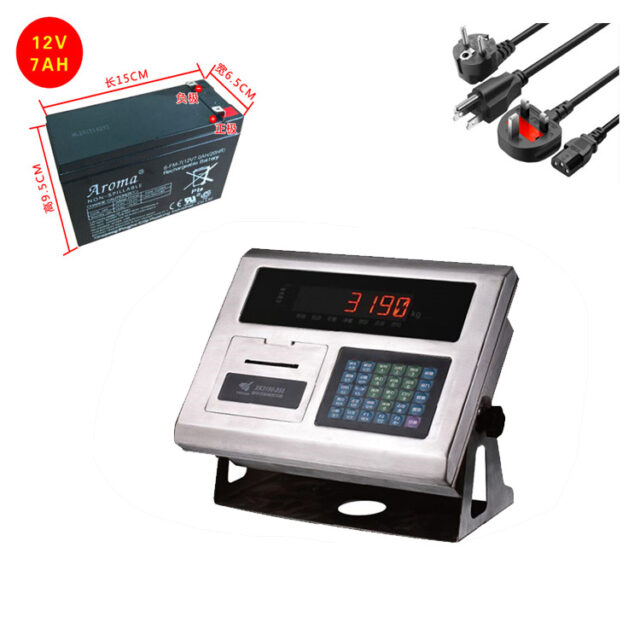

• DC power supply: external 12V battery power supply
