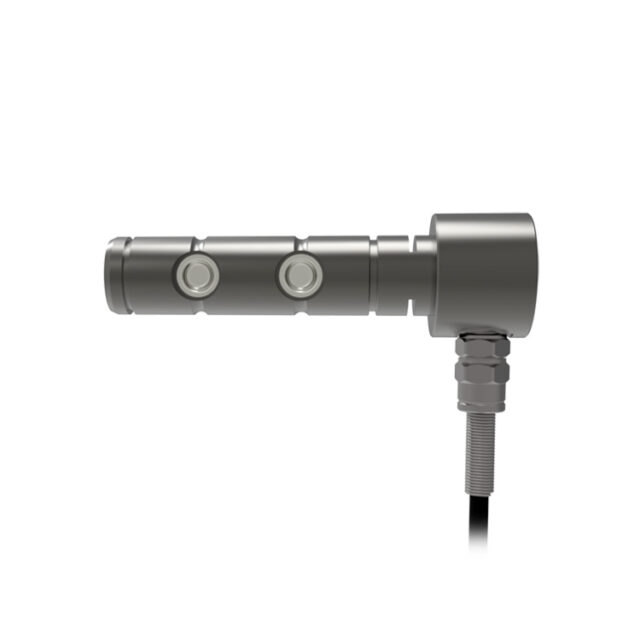

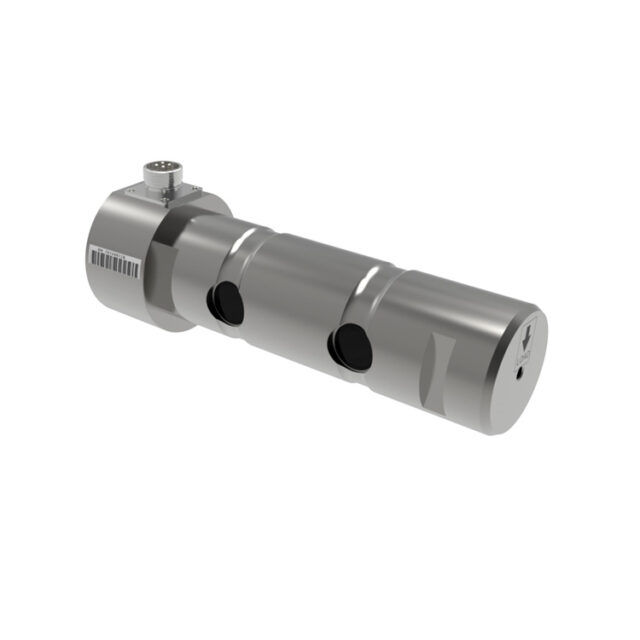

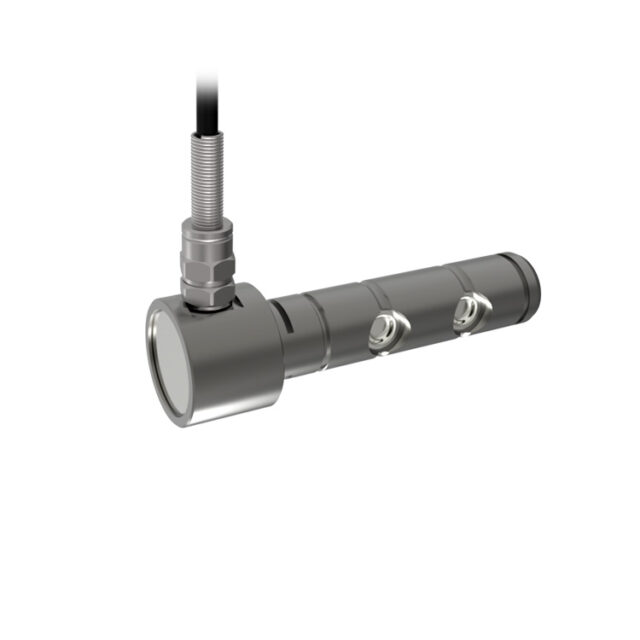

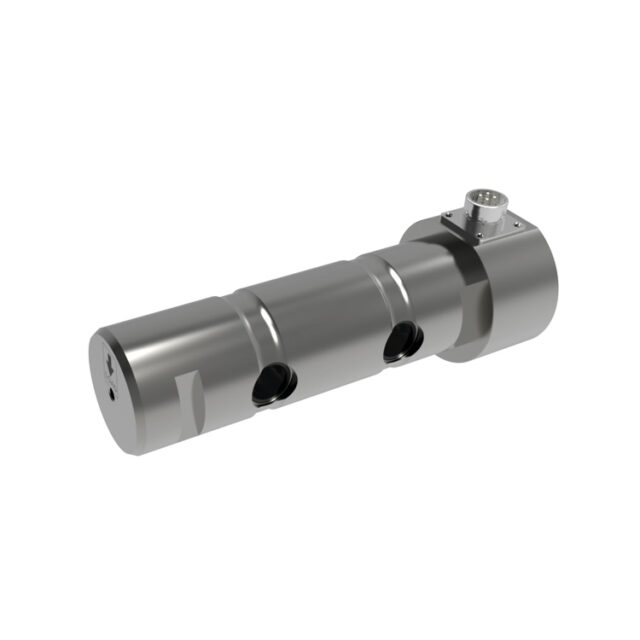

LPD

Load pin

Categories: LOAD CELL, Load Pin

General Details

Customize pin dimension, capacity, cable entry or connector type

Extremely accurate

Ideal for crane, hoists and construction machine

Alloy steel or Stainless steel , robust construction

Free replace existing axles

3000 divisions OIML R60 class C

Auto temperature compensated

Safety overloading: 150%, Breaking Overload: 300%

Fully laser welded for harsh industrial environment

High quality nickel plated with strong corrosion resistant

Available in high temperature up to +200°C

Available in analog 2.0~3.0mV/V, 4~20mA, 0~5V, 0~10V.

Available in digital A/D 1,000,000d, Modbus

LPD

Items	C3 C4 C5 C6	Unit
Combined error	0.015 0.012 0.01 0.008	%Emax
Rated Capacity	1, 2, 3, 5, 10, 20, 30, 50, 60, 100, 200	Ton
Rated Output	Analog 2.0mV/V ± 0.1% Digital 1,000,000d
Zero Output	< 1.0	%Cn
Non-linearity	< 0.01	%Cn
Repeatability	< 0.005	%Cn
Hysteresis Error	< 0.015 < 0.0125 < 0.010 < 0.008	%Cn
Creep	< 0.015 < 0.0125 < 0.010 < 0.008	%Cn
Temperature Effect on sensitivity(Tkc)	< 0.010 < 0.008 < 0.007 < 0.005	%Cn/k
Temperature Effect on zero balance(Tko)	< 0.010 < 0.007 < 0.007 < 0.007	%Cn/k
Input Resistance	385 ±5	Ω(Ohms)
Output Resistance	351 ± 2	Ω(Ohms)
Insulation Resistance	> 5000	MΩ (50V DC)
Safe Overload	150	%F.S
Breaking Overload	300	%F.S
Working Temperature Range	-20~ +70 /-20 ~ +160	°C/°F
Recommended Excitation	8~15	V (DC or AC)
Maximum Excitation	24	V (DC or AC)

Material of elastomer	Alloy steel / Stainless steel
Protection level	IP68 / IP69 / IP69K
Cable	0.5t~3t: 3m; 5t~8t: 6m; 10t: 8m; 20t: 10m;
Standard	GB/T7551-2008 OIML R60
