| Accuracy Standard | According to OIML class III |
| Scale/Indicator Display | 30mm (1.2’’) 5digits LED/25mm(1”) 5digits LCD |
| Zero Range | 4% F.S. |
| Tare Range | 100% F.S. |
| Stable Time | ≤10 seconds |
| Overload Indication | 100% F.S. + 9e |
| Max. Safety Load | 125% F.S. |
| Ultimate Load | 400% F.S. |
| Scale/indicator Battery Life | ≥70 hours |
| Scale Battery Type | Fully sealed Lead-Acid battery, 6V/7Ah |
| Indicator Battery | “LR6(AA)”size alkaline batteries. 1.5Vx4 |
| Scale Adapter | DC9V/1000mA |
| Nominal operating Temp. | – 10℃ ~ + 180℃ |
| Operating Humidity | ≤85% RH under 20℃ |
| Wireless Distance | 200M without obstacle |
| Wireless Frequency | 433MHz |

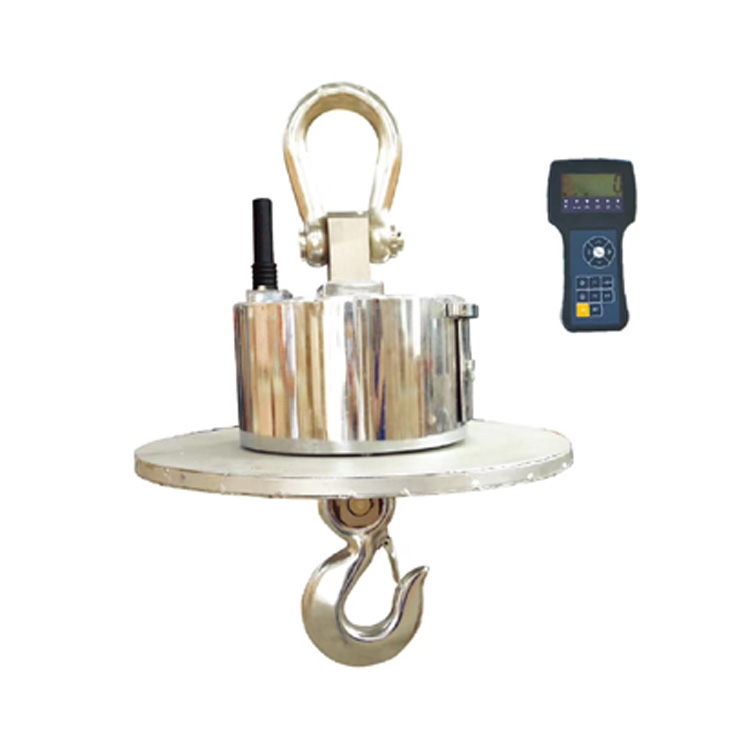

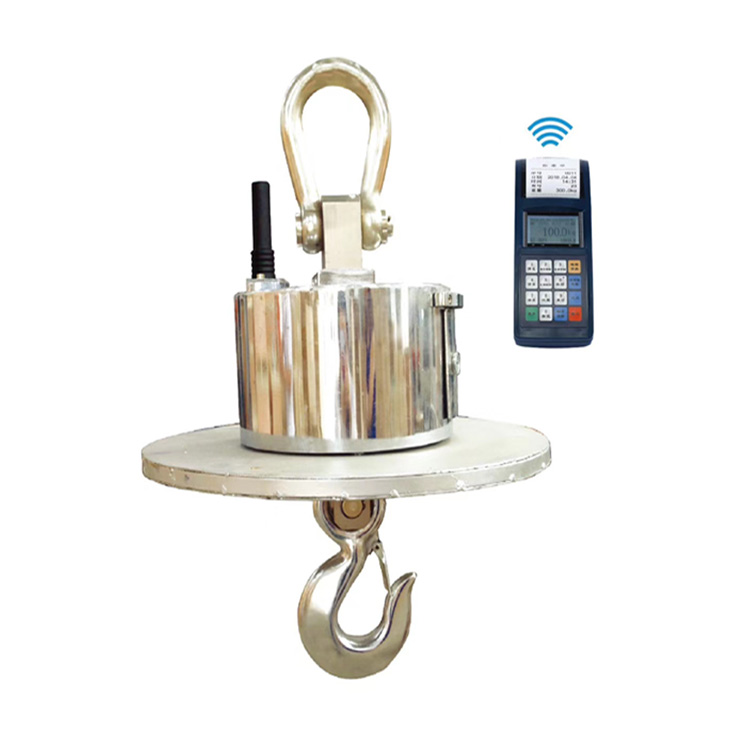

OCS-W-H
Products features
- All steel housing
- impact resistance design
- Anti-electromagnetic interference
- Wireless transmission distance more than 300m without blocking, with signal strength and power supply monitoring system
- Working temperature can be customized according to user requirements, normal -15 degree C to 55 degree C.
- 5-10t scale adopt 6V/4AH, 10-15t scale adopt 6V/10AH Ni-MH rechargeable battery
Main technical data
Specification
| MODEL | Max. capacity
(kg) |
Min. weigh
(kg) |
Division
(kg) |
Total display counts (n) |
| OCS-W-H-3 | 3000 | 20 | 1 | 3000 |
| OCS-W-H-5 | 5000 | 40 | 2 | 2500 |
| OCS-W-H-10 | 10000 | 100 | 5 | 2000 |
| OCS-W-H-15 | 15000 | 100 | 5 | 3000 |
| OCS-W-H-20 | 20000 | 200 | 10 | 2000 |
| OCS-W-H-30 | 30000 | 200 | 10 | 3000 |
| OCS-W-H-50 | 50000 | 300 | 20 | 2500 |
| Iron temp. |
1000 °C |
1200 °C | 1400 °C |
1500 °C |
| safety distance |
1200mm |
1500mm | 1800mm |
2000mm |

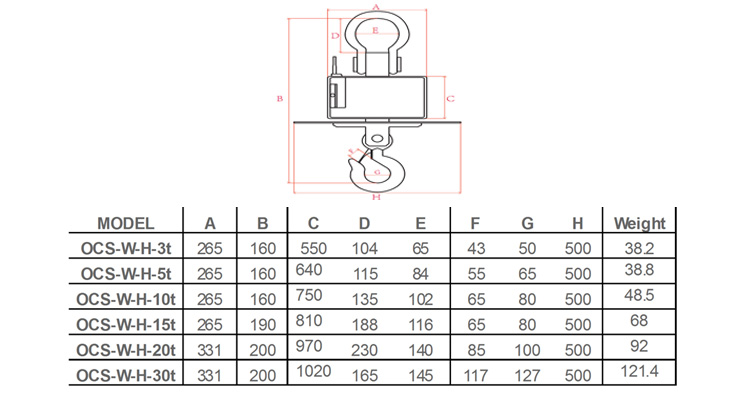

Appearance illustration
