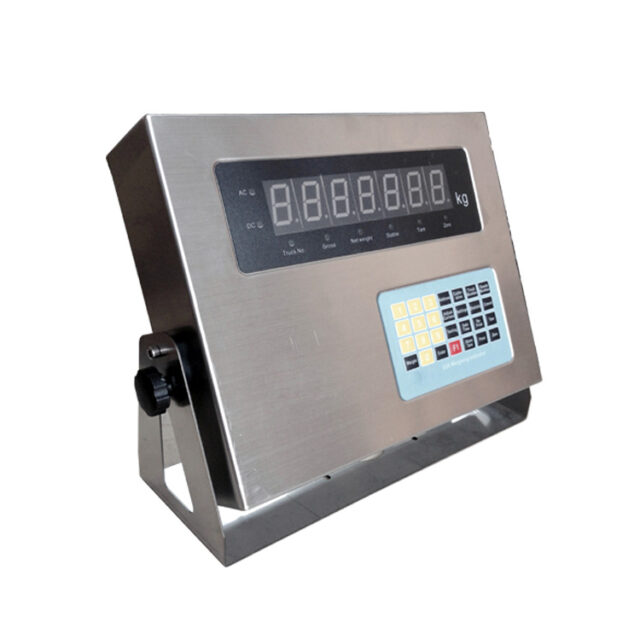

QDI-11

Products features

◆Stainless steel housing, mirco-printer optional

◆Able to connect several sorts of digital load cells using Benui protocol

◆Auto/semi-auto/manual angle correction

◆Digital load cell communication address modification function

◆Single load cell and single angle data checking function

◆With two divisions auto switch function

◆Non-linearity correction and calibration tolerance correction

◆Time power-off function

◆Weighing data save/check/delete/ protection in case of power off

◆Standard RS232C (RS422/RS485 optional) communication interface

◆Standard scoreboard interface with 20mA current loop method

◆Standard parallel print interface

◆Able to save 1000 vehicle ID and corresponding tare weight、201 cargo ID and corresponding cargo name、1001 weighing records

◆Able to back up and recover various parameters of indicator, reliable and practical

Dimensions

Technical Specifications

Digital load cell connection

• Connection method: RS485、 capatiable for both four and six wires
• Connection distance: About 1000 meters
• Connection quantity:1~16
• Load cell power: DC 12V,0.8A(Max)

Display

Display method: 7 bits super bright LED display, 10 indications

• Clock: real clock
• Scoreboard interface

Signal: 20mA current loop，serial. Baud rate: 600 Transmission distance: ≤2000 meters

Printer interface

• Available for wide line printer：LQ-300K、KX-P1131、KX-P1121 、

DS-300 Thermal micro-printer：POS58、T58D

• Optional panel type micro printer

Serial communication interface

Standard interface: RS232C (RS422/RS485 optional)

Power supply:AC187～242V;49～51HZ

DC power supply: (outside) rechargeable 12V battery
