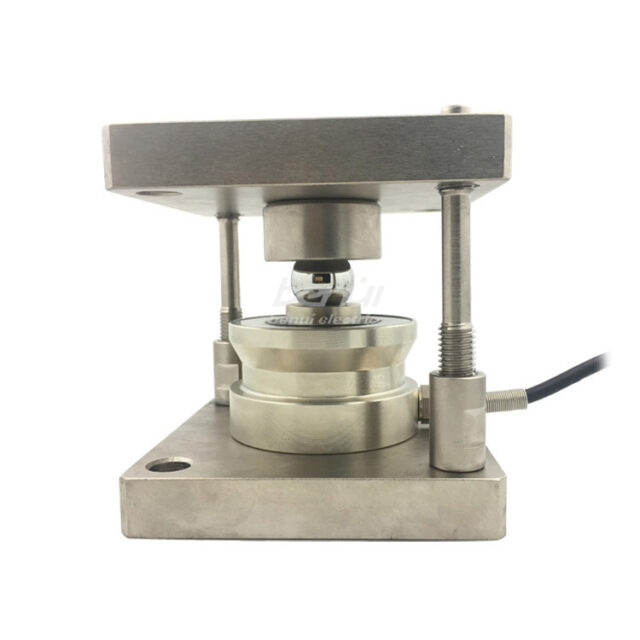

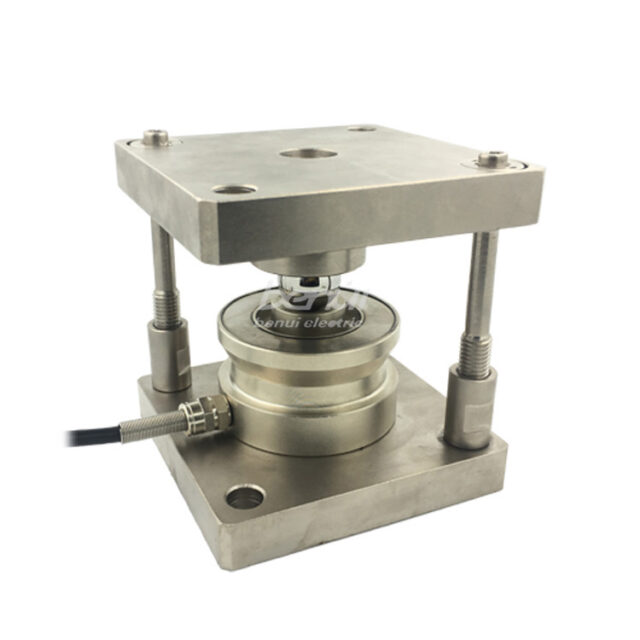

RNT-M load cell

Categories: LOAD CELL, Torsional Ring Type Lad Cell

General Details

Support with mounting module

Particularly robust for heavy duty industrial use

Wide range loading 1- 470t

Compact design

Quite low profile

Standard with 2.0mV/V sensitivity and 4-wire connection

High accuracy, pretty precision

Safety overloading: 150%, Breaking Overload: 300%

Fully laser welded for harsh industrial environment

High quality nickel plated with strong corrosion resistant

RNT-M

Items	C3 C4 C5 C6	Unit
Combined error	0.015 0.012 0.01 0.008	%Emax
Rated Capacity	1, 2.2, 3.3, 4.7, 10, 22, 33, 47	Ton
Rated Output	Analog 2.0mV/V ± 0.1% Digital 1,000,000d
Zero Output	< 1.0	%Cn
Non-linearity	< 0.01	%Cn
Repeatability	< 0.005	%Cn
Hysteresis Error	< 0.015 < 0.0125 < 0.010 < 0.008	%Cn
Creep	< 0.015 < 0.0125 < 0.010 < 0.008	%Cn
Temperature Effect on sensitivity(Tkc)	< 0.010 < 0.008 < 0.007 < 0.005	%Cn/k
Temperature Effect on zero balance(Tko)	< 0.010 < 0.007 < 0.007 < 0.007	%Cn/k
Input Resistance	1550 ±10	Ω(Ohms)
Output Resistance	1402 ± 2	Ω(Ohms)
Insulation Resistance	> 5000	MΩ (50V DC)
Safe Overload	150	%F.S
Breaking Overload	300	%F.S
Working Temperature Range	-20~ +70 /-20 ~ +160	°C/°F
Recommended Excitation	8~15	V (DC or AC)
Maximum Excitation	24	V (DC or AC)

Material of elastomer	Alloy steel / Stainless steel
Protection level	IP68 / IP69 / IP69K
Cable	20t~30t: 12m; 40t~60t: 16m;
Standard	GB/T7551-2008 OIML R60
