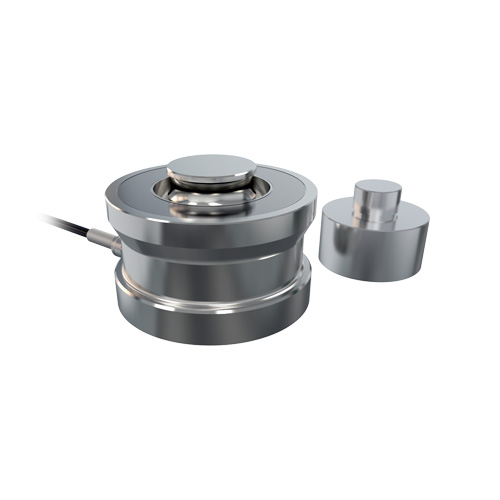

RNT-MH load cell

General Details

Key features:

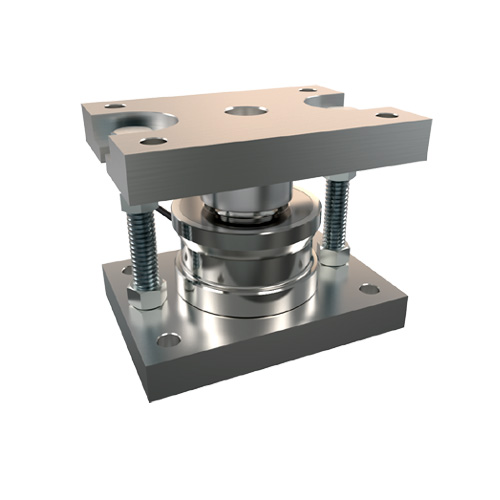

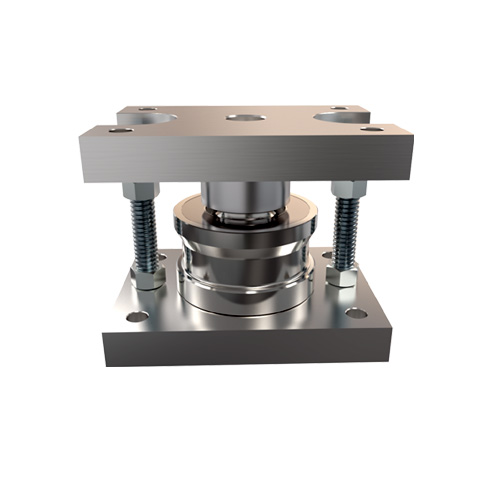

Support with mounting module

Particularly robust for heavy duty industrial use

Wide range loading 1- 470t

Compact design

Quite low profile

Standard with 2.0mV/V sensitivity and 4-wire connection

High accuracy, pretty precision

Safety overloading: 150%, Breaking Overload: 300%

Fully laser welded for harsh industrial environment

High quality nickel plated with strong corrosion resistant



DIMENSIONS

RNT-M

SPECIFICATIONS

Items C3        C4        C5        C6 Unit
Combined error 0.015      0.012      0.01      0.008 %Emax
Rated Capacity 1, 2.2, 3.3, 4.7, 10, 22, 33, 47, 100 Ton
Rated Output Analog 2.0mV/V ± 0.1%   Digital 1,000,000d
Zero Output < 1.0 %Cn
Non-linearity < 0.01 %Cn
Repeatability < 0.005 %Cn
Hysteresis Error < 0.015  < 0.0125  < 0.010   < 0.008 %Cn
Creep < 0.015  < 0.0125  < 0.010   < 0.008 %Cn
Temperature Effect on sensitivity(Tkc) < 0.010  < 0.008  < 0.007   < 0.005 %Cn/k
Temperature Effect on zero balance(Tko) < 0.010  < 0.007  < 0.007   < 0.007 %Cn/k
Input Resistance 1550 ±10 Ω(Ohms)
Output Resistance 1402 ± 2 Ω(Ohms)
Insulation Resistance > 5000 MΩ (50V DC)
Safe Overload 150 %F.S
Breaking Overload 300 %F.S
Working Temperature Range -20~ +70 /-20 ~ +160 °C/°F
Recommended Excitation 8~15 V (DC or AC)
Maximum Excitation 24 V (DC or AC)
Material of elastomer Alloy steel / Stainless steel
Protection level IP68 / IP69 / IP69K
Cable 20t~30t: 12m; 40t~60t: 16m;
Standard GB/T7551-2008  OIML R60

WIRING CODE
