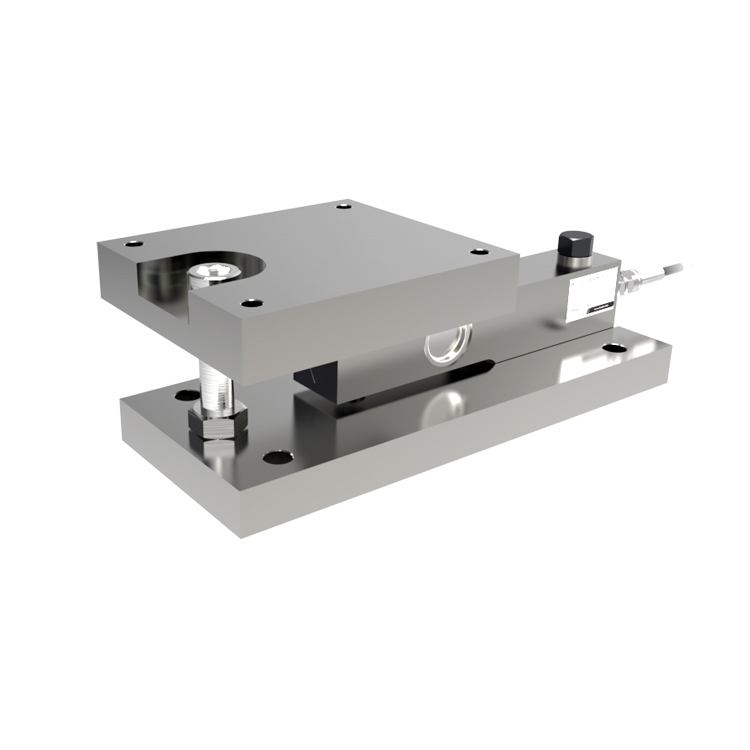

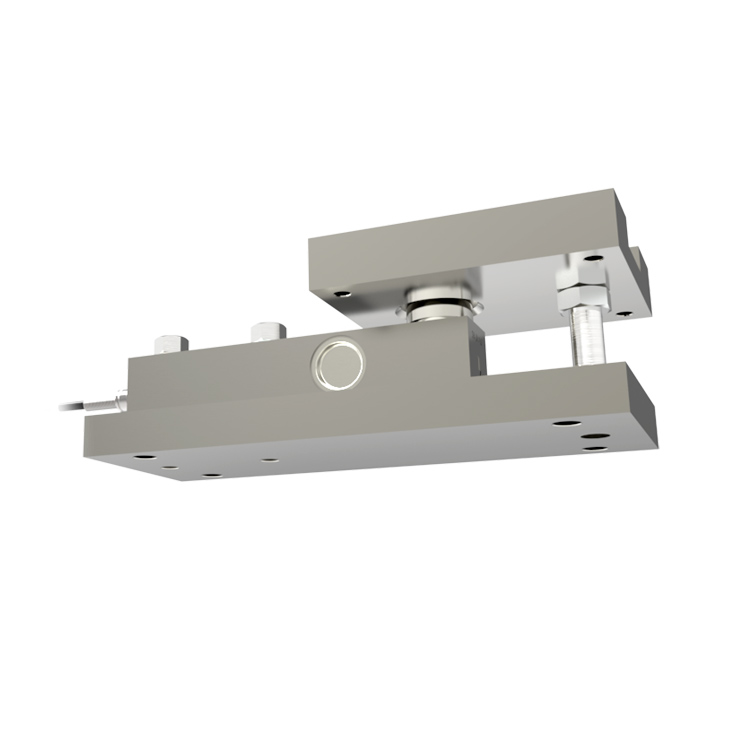

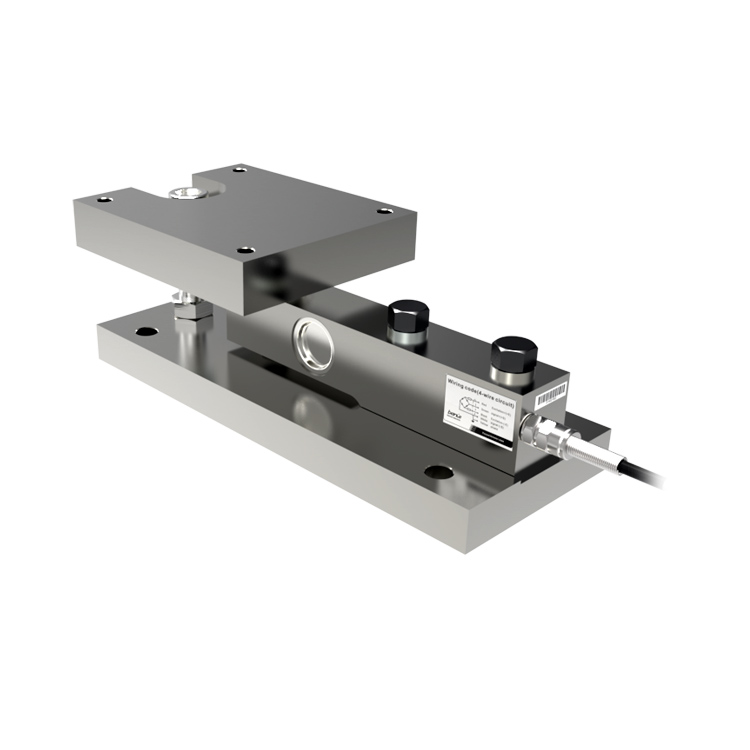

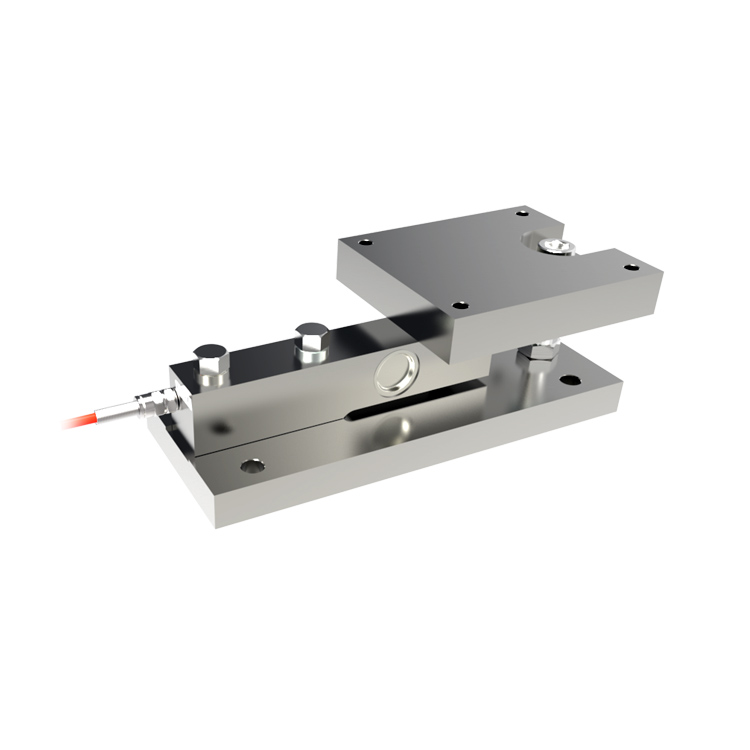

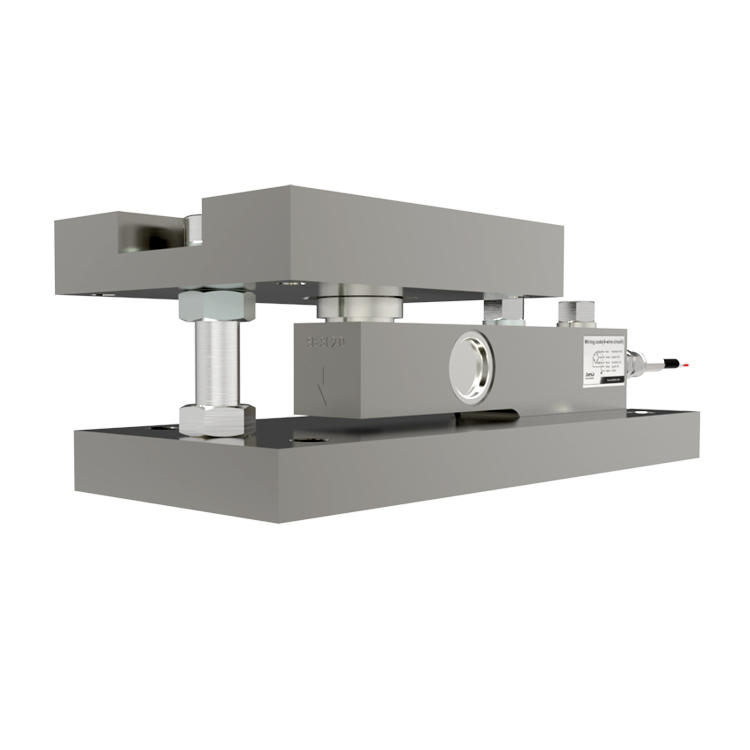

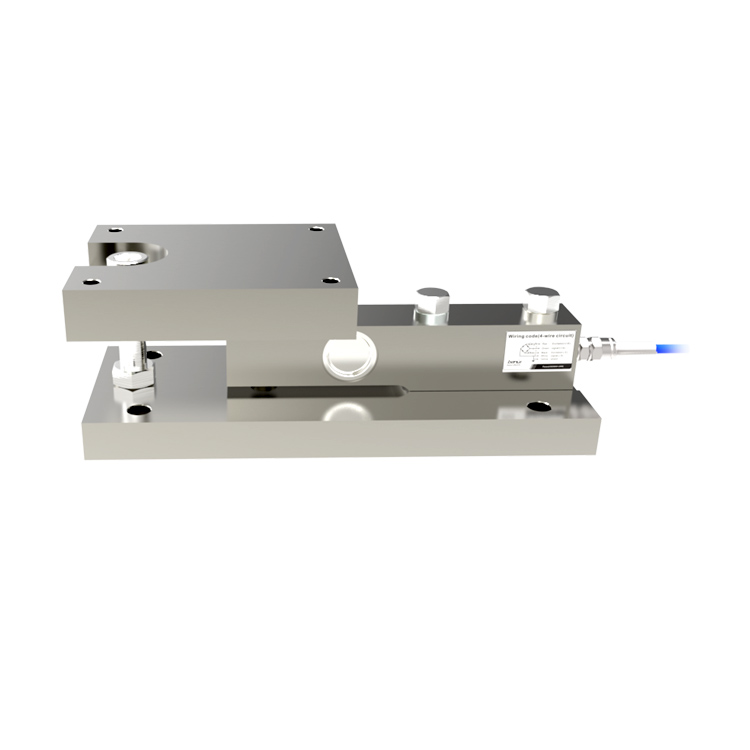

SB-M load cell

General Details

KEY FEATURES:

With static or dynamic mounting accessories, easy installation

Extremely robust

Full laser welded bending beam load cell

Low profile design

3000 divisions OIML R60 class C

Auto temperature compensated

Standard with 2.0mV/V sensitivity and 4-wire connection

Ideal for platforms, hoppers and silo scales

Safety overloading: 150%, Breaking Overload: 300%

Fully laser welded for harsh industrial environment

High quality nickel plated with strong corrosion resistant

APPLICATION

KIS-M SB-M SWB application

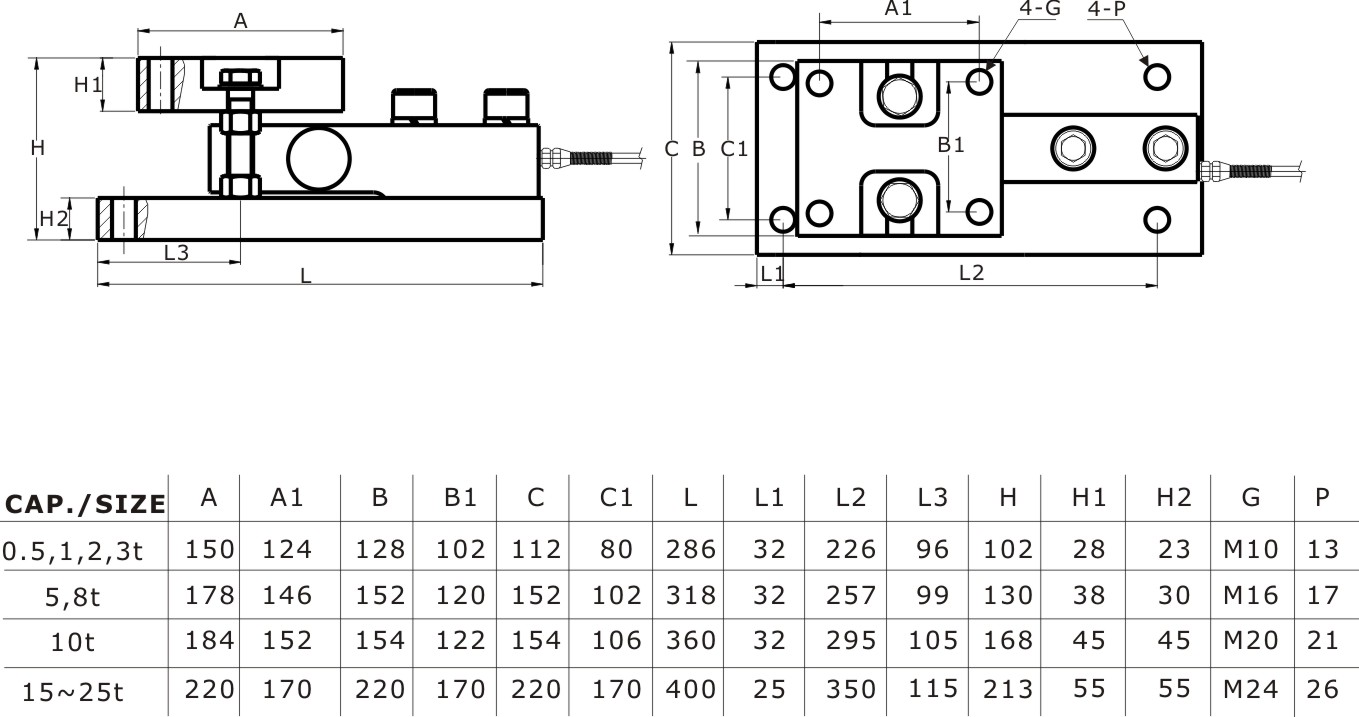

DIMENSIONS

SB-M尺寸图

SPECIFICATIONS

Items C3        C4        C5        C6 Unit
Combined error 0.015      0.012      0.01      0.008 %Emax
Rated Capacity 0.3, 0.5, 1,2, 3, 5, 8, 10, 20, 25 Ton
Rated Output Analog 2.0mV/V ± 0.1%   Digital 1,000,000d
Zero Output < 1.0 %Cn
Non-linearity < 0.01 %Cn
Repeatability < 0.005 %Cn
Hysteresis Error < 0.015  < 0.0125  < 0.010   < 0.008 %Cn
Creep < 0.015  < 0.0125  < 0.010   < 0.008 %Cn
Temperature Effect on sensitivity(Tkc) < 0.010  < 0.008  < 0.007   < 0.005 %Cn/k
Temperature Effect on zero balance(Tko) < 0.010  < 0.007  < 0.007   < 0.007 %Cn/k
Input Resistance 385 ±5 Ω(Ohms)
Output Resistance 351 ± 2 Ω(Ohms)
Insulation Resistance > 5000 MΩ (50V DC)
Safe Overload 150 %F.S
Breaking Overload 300 %F.S
Working Temperature Range -20~ +70 /-20 ~ +160 °C/°F
Recommended Excitation 8~15 V (DC or AC)
Maximum Excitation 24 V (DC or AC)
Material of elastomer Alloy steel / Stainless steel
Protection level IP68 / IP69 / IP69K
Cable 0.5t~3t: 3m;  5t~8t: 6m; 10t: 8m; 20t: 10m;
Standard GB/T7551-2008  OIML R60

INSTALLATION

SB installation

WIRING CODE

PACKAGING(CARTON)

Rated capacity 0.5/1/2/3t 5t 10t 20/25t
Net.w per carton 15kg*1 30kg*1 50kg*1 85kg*1
Volume 0.41*0.21*0.21m³/0.7kg
