SLC load cell

Categories: Load button type, LOAD CELL

General Details

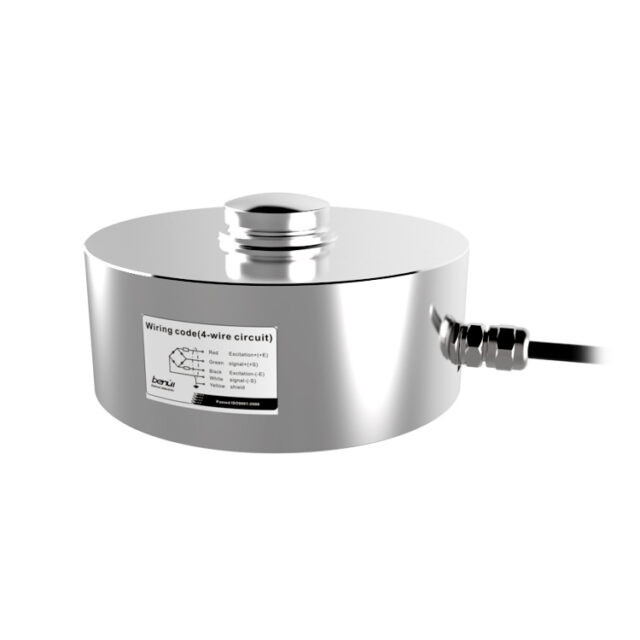

Load button type load cell

Low height for flexible installation

Wide range loading 0.5 – 75 t

Standard with 2.0mV/V sensitivity and 4-wire connection

Ideal for tank & silo weighing system, platform scale and process weighing machines

Safety overloading: 150%, Breaking Overload: 300%

Fully laser welded for harsh industrial environment

High quality nickel plated with strong corrosion resistant

SLC2 dimension

Items	C3 C4 C5 C6	Unit
Combined error	0.015 0.012 0.01 0.008	%Emax
Rated Capacity	0.5, 1, 2, 3, 5, 10, 20, 30, 50, 75	Ton
Rated Output	Analog 2.0mV/V ± 0.1% Digital 1,000,000d
Zero Output	< 1.0	%Cn
Non-linearity	< 0.01	%Cn
Repeatability	< 0.005	%Cn
Hysteresis Error	< 0.015 < 0.0125 < 0.010 < 0.008	%Cn
Creep	< 0.015 < 0.0125 < 0.010 < 0.008	%Cn
Temperature Effect on sensitivity(Tkc)	< 0.010 < 0.008 < 0.007 < 0.005	%Cn/k
Temperature Effect on zero balance(Tko)	< 0.010 < 0.007 < 0.007 < 0.007	%Cn/k
Input Resistance	775 ±10	Ω(Ohms)
Output Resistance	702 ± 2	Ω(Ohms)
Insulation Resistance	> 5000	MΩ (50V DC)
Safe Overload	150	%F.S
Breaking Overload	300	%F.S
Working Temperature Range	-20~ +70 /-20 ~ +160	°C/°F
Recommended Excitation	8~15	V (DC or AC)
Maximum Excitation	24	V (DC or AC)

Material of elastomer	Alloy steel / Stainless steel
Protection level	IP68 / IP69 / IP69K
Cable	0.5t~30t: 12m; 40t~75t: 16m;
Standard	GB/T7551-2008 OIML R60
