SPS-V8A
Products features
-

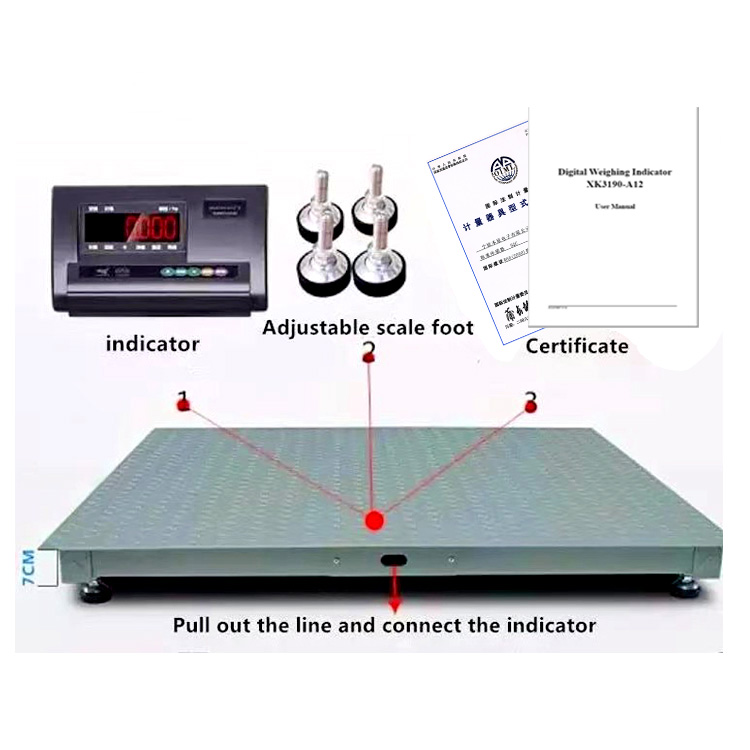

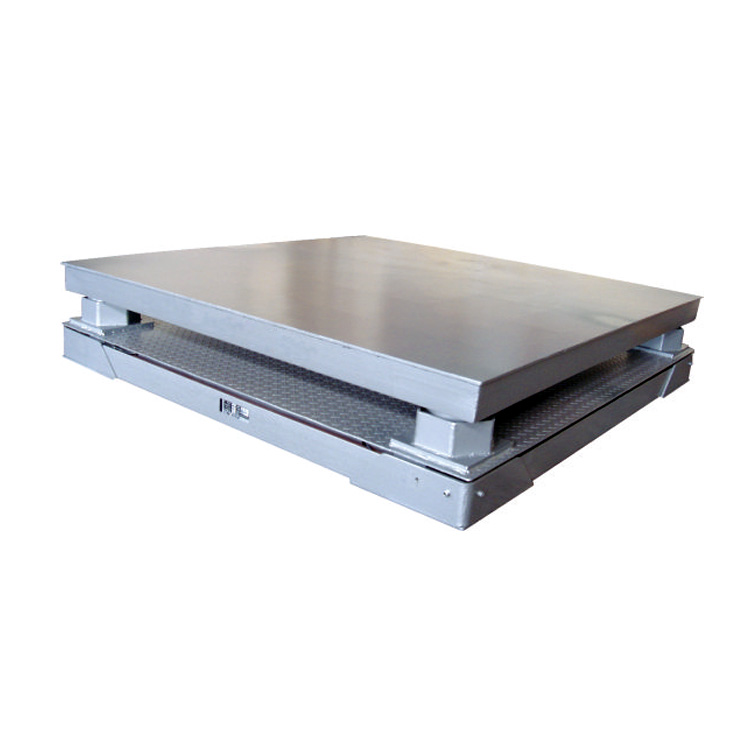

SPS-V8A self-contained platform scale
-
General Designed for surface mounting
-
Low height platform with no projection above platform level
-
Fabricated mild steel construction
-
Optional stainless steel construction available.
-
Slip resistant platform
-
stainless steel load cells offered as an option
-
Bridge approach offered as an option
-

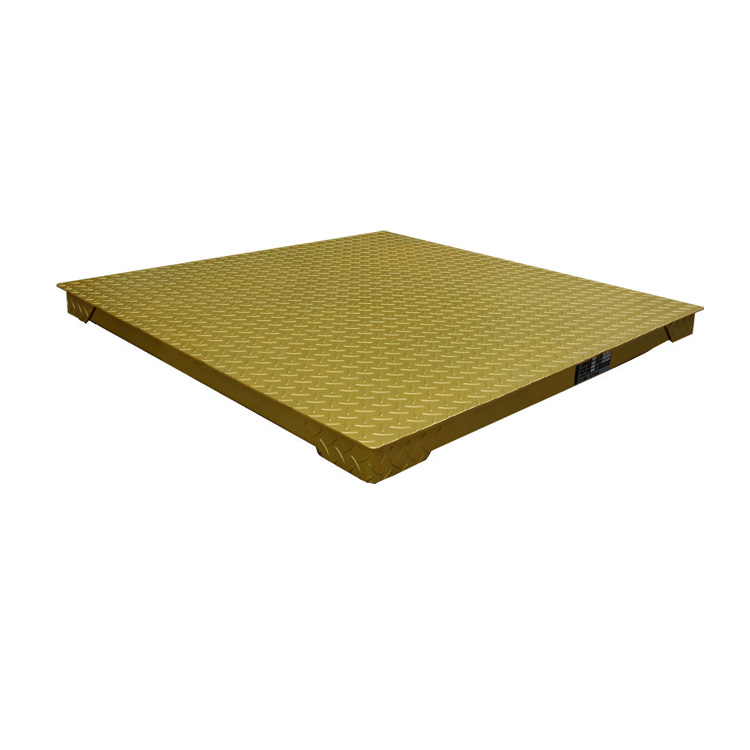

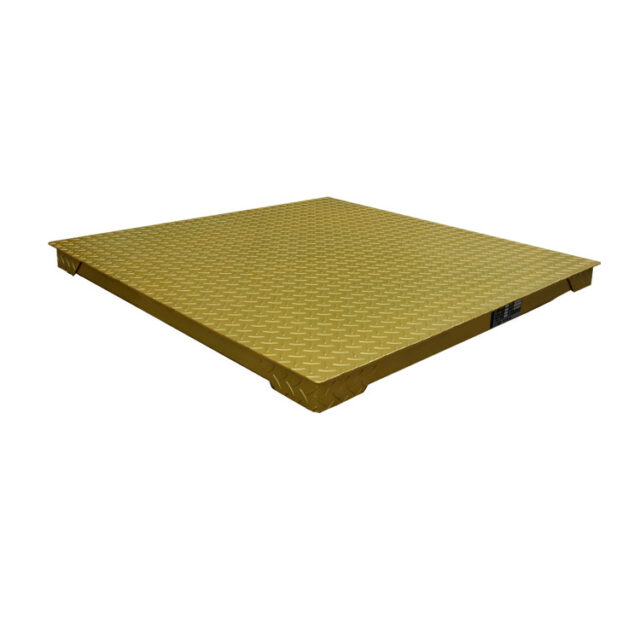

The color of platform offered as an option
-
Approved to OIML R76
-
The number of approved divisions is dependent on the load cell used.
Specification
Alloy steel or Stainless Steel platform with SQC-MA load cells
| Platform Size | 2500kg | 5000kg | 10000kg |
| 1m x 1m | ● | ● | |
| 1.2m x 1.2m | ● | ● | |
| 1.2m x 1.5m | ● | ● | |
| 1.5m x 1.5m | ● | ● | |
| 1.5m x 2m | ● | ● | |
| 1.5m x 3m | ● | ● | ● |
| 2m x 2m | ● | ● | ● |
| 3m x 7m | ● | ● | ● |
| Load cell | 750kg | 1500kg | 200 |
| Capacities | 600/800kg * 0.2kg 1200/1500kg * 0.5kg |
1500/2000kg*0.5kg 3000/4000kg*1kg |
3000/4000kg*1kg 6000/8000kg*2kg |
| Options at extra cost | 1200kg * 0.2kg | 3000kg * 0.5kg | 6000kg * 1kg |
Note:
- When used with instrinsically safe inidicators,pliease refer to the indicator specification sheet for minimum increment value.
- Not more than 55% of the maximum strongth can be carried on one half the platform or any line across the platform.
Operation condition
-
Work temperature:weighing display control: -10 ~ +40c
-
Load cell: -20 ~ +60c
-
relative humidity: <95%
-
electric source: voltage 220v AC(-15% ~ +10%); frequency 50Hz
-
safe overloading:130%
