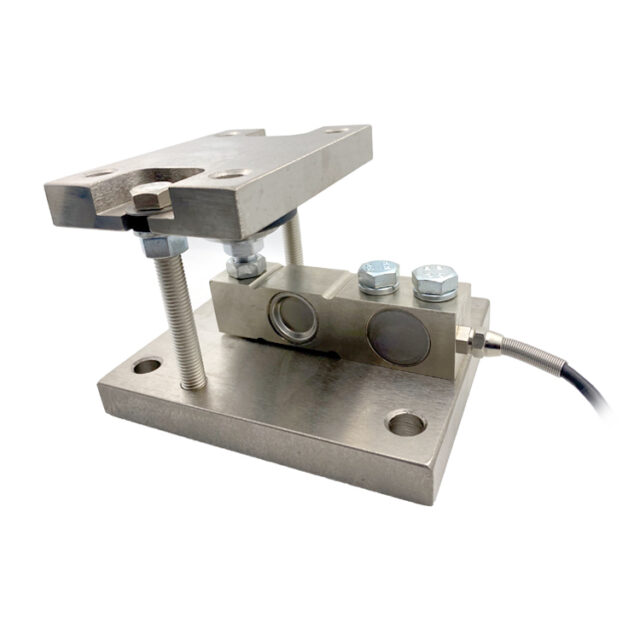

SQC-MAE
General Details
KEY FEATURES:
Extremely accurate
With full mounting accessories, easy installation
Low profile design with high stable
Alloy steel or Stainless steel structure
Full laser welded bending beam load cell
3000 divisions OIML R60 class C
Auto temperature compensated
Standard with 2.0mV/V sensitivity and 4-wire connection
Ideal for tanks, hoppers and silo scales
Safety overloading: 150%, Breaking Overload: 300%
Fully laser welded for harsh industrial environment
High quality nickel plated with strong corrosion resistant
APPLICATION
DIMENSIONS
SPECIFICATIONS
| Items | C3 C4 C5 C6 | Unit |
| Combined error | 0.015 0.012 0.01 0.008 | %Emax |
| Rated Capacity | 0.1, 0.5, 1,2, 3, 5, 8, 10 | Ton |
| Rated Output | Analog 2.0mV/V ± 0.1% Digital 1,000,000d | |
| Zero Output | < 1.0 | %Cn |
| Non-linearity | < 0.01 | %Cn |
| Repeatability | < 0.005 | %Cn |
| Hysteresis Error | < 0.015 < 0.0125 < 0.010 < 0.008 | %Cn |
| Creep | < 0.015 < 0.0125 < 0.010 < 0.008 | %Cn |
| Temperature Effect on sensitivity(Tkc) | < 0.010 < 0.008 < 0.007 < 0.005 | %Cn/k |
| Temperature Effect on zero balance(Tko) | < 0.010 < 0.007 < 0.007 < 0.007 | %Cn/k |
| Input Resistance | 385 ±5 | Ω(Ohms) |
| Output Resistance | 351 ± 2 | Ω(Ohms) |
| Insulation Resistance | > 5000 | MΩ (50V DC) |
| Safe Overload | 150 | %F.S |
| Breaking Overload | 300 | %F.S |
| Working Temperature Range | -20~ +70 /-20 ~ +160 | °C/°F |
| Recommended Excitation | 8~15 | V (DC or AC) |
| Maximum Excitation | 24 | V (DC or AC) |
| Material of elastomer | Alloy steel / Stainless steel | |
| Protection level | IP68 / IP69 / IP69K | |
| Cable | 0.5t~3t: 3m; 5t~8t: 6m; 10t: 8m; 20t: 10m; | |
| Standard | GB/T7551-2008 OIML R60 | |
INSTALLATION
WIRING CODE
PACKAGING(CARTON)
| Rated capacity | 0.1~3t | 5t | 10t |
| Net.w per carton | 9kg*2 | 15.5kg*1 | 20kg*1 |
| Volume | 0.41*0.21*0.21m³/0.7kg | ||
